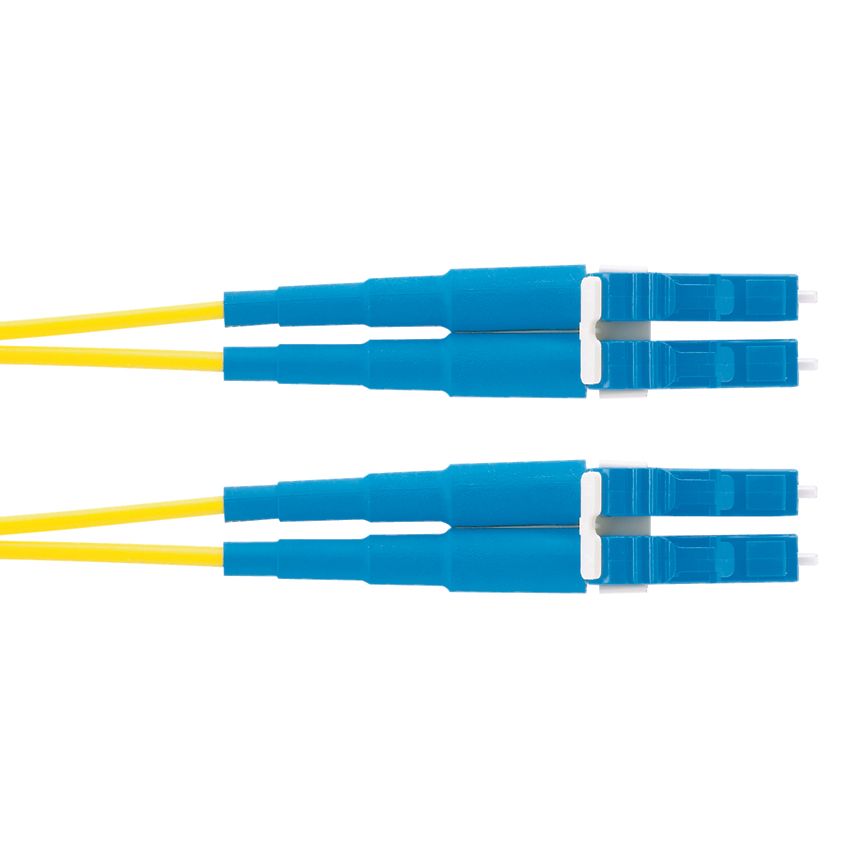

Opti-Core® 2 Fiber Patch Cord, OS1/OS2, LC Duplex, Riser
F92ERLNLNSNM003
The duplex fiber patch cord is OS1/OS2 with 1.6mm cable jacket. It is Riser (OFNR), features LC Duplex connectors, has standard insertion loss and is 3 meters in length.
Specifications
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core® |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 55 |
| Flammability Rating | Riser |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 9.8 |
| Overall Length (m) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Cable Color | Yellow |
| Boot Color | Green |
| Body Style | Duplex |
| Product Type | LC Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Resistance Properties | Flame-Resistant |
| Environment | Indoor |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
Packaging Detail
| UPC | 07498392141 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0155 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.1550 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Opti-Core® Fiber Optic Patch Cords Specification Sheet FBSP54 8-2021 | English | |
| Specification Sheets | Cables de Parcheo de Fibra Óptica y Pigtails Opti-Core® Hoja de Especificaciones FBSP54 | Spanish (Español) | |
| Part Drawings | Jacketed Duplex Fiber Patch Cords | English | |
| Selection Guides | Fibra Sin Límites Alcance & Desempeño Guia de Seleccion FBSD62--WW-SPA | Spanish (Español) |
